DOBOT Magician Lite

Shake hands with the future!

A perfect learning platform for educators and students

DOBOT Magician Lite, a multi-functional lightweight intelligent robotic arm, is one of the core products in DOBOT’s K12 customized artificial intelligence education ecosystem. Magician Lite enjoys numerous software and hardware interaction methods and expansion interfaces in order to maximize students’ freedom to create. Through building and playing, students can learn how artificial intelligence and mechanics work. They will be also introduced to a world of rudimentary knowledge of robotics and how they can be used in real world.

Additionally, DOBOT hosts robotics competitions to stoke students’ interest in robotics and get more of them to be involved. Students work together as a team to address challenging tasks by designing, creating, and programming their own robots. This means that these students not only can put what they have learned to rigid test, but also get to celebrate their unique talents and achievements.

Browse our robot arm accessories!

Please contact us for a quotation!




Excellent performance & safe to use

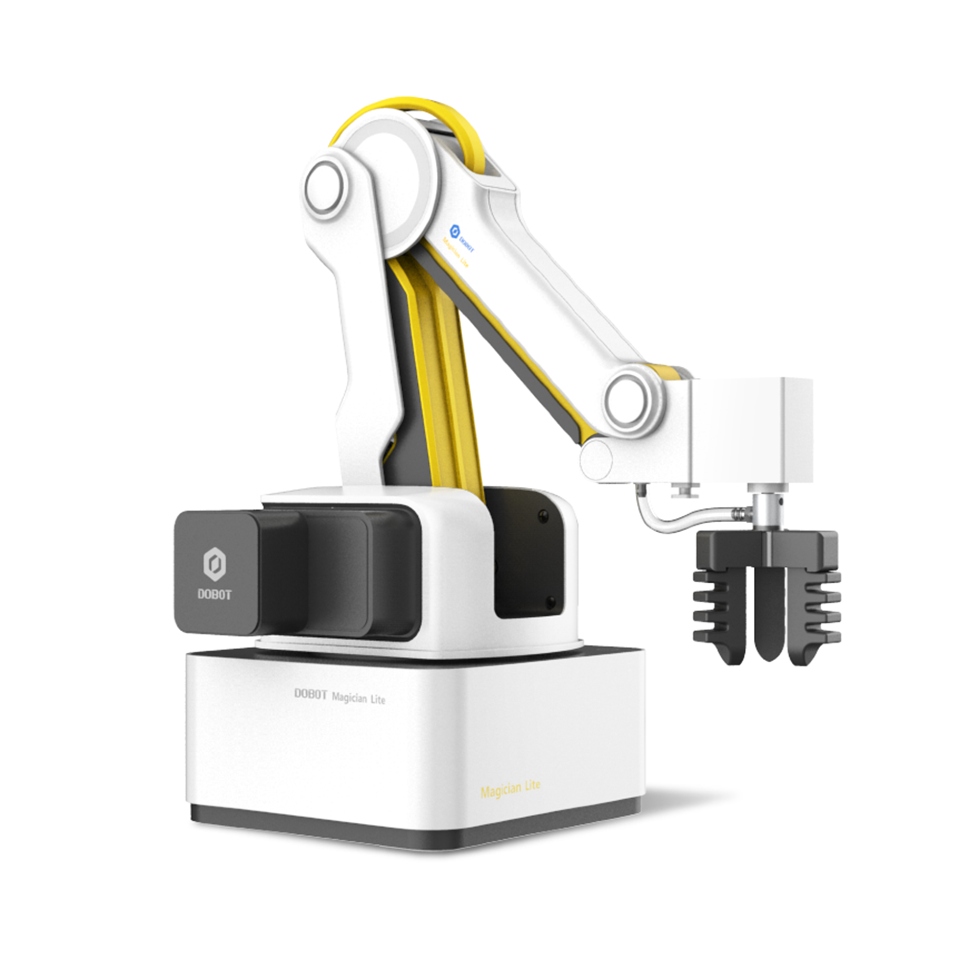

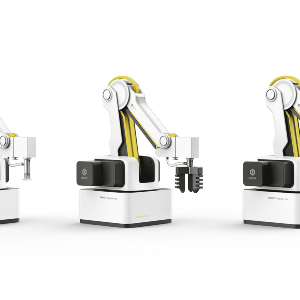

Magician Lite is compact and only weighs 2.4kg, making it portable and easy to build an application scenario. Its repeatability positioning is 0.2mm, payload 0.25kg, and radius range 340mm. It supports a soft gripper, suction cup, pen grasper and other changeable end tools. The robot has collision detection function, making it safe for children to be around.

- Maximum reach 340mm
- Maximum Load 0.25KG
- Repeatability 0.2mm


Magic Box for unlimited capabilities

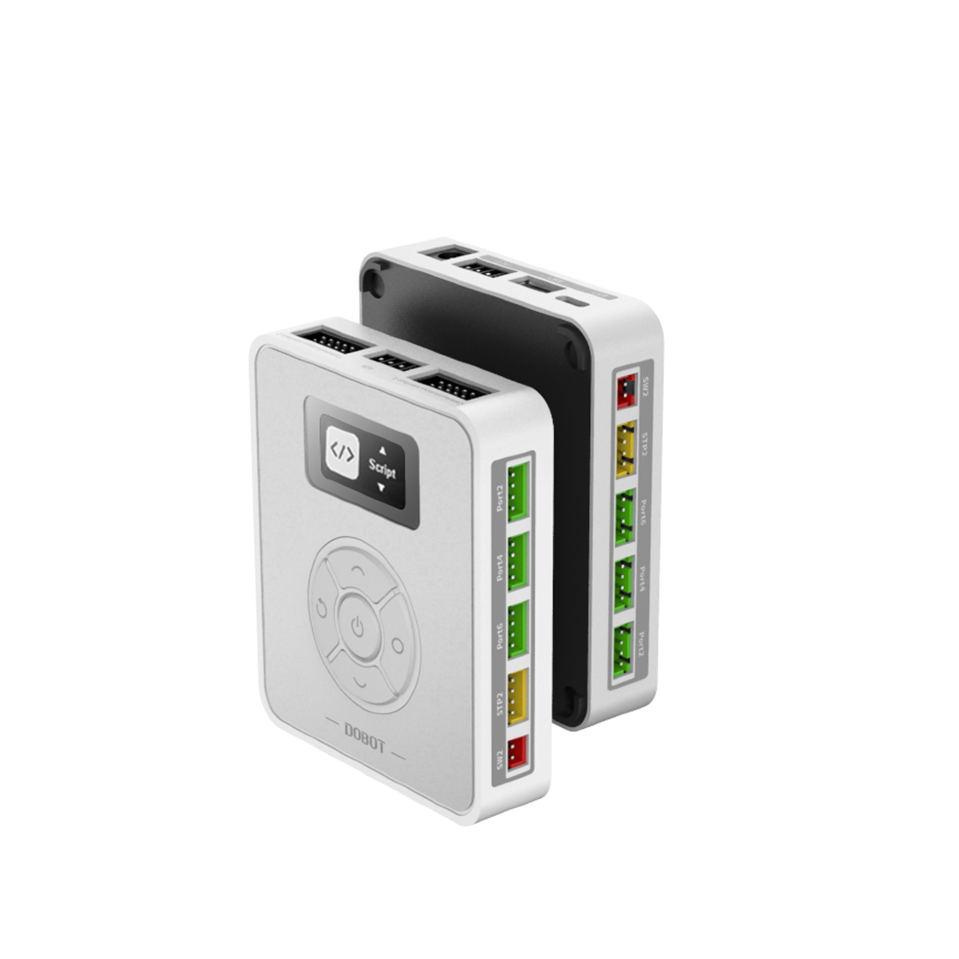

Magician Lite features an external controller called “Magic Box” that separates motion control algorithm and user tasks to allow more convenience for programming and creating. The robot supports Bluetooth and Bluetooth connection. 12 expansion interfaces ensure maximum openness and compatibility.

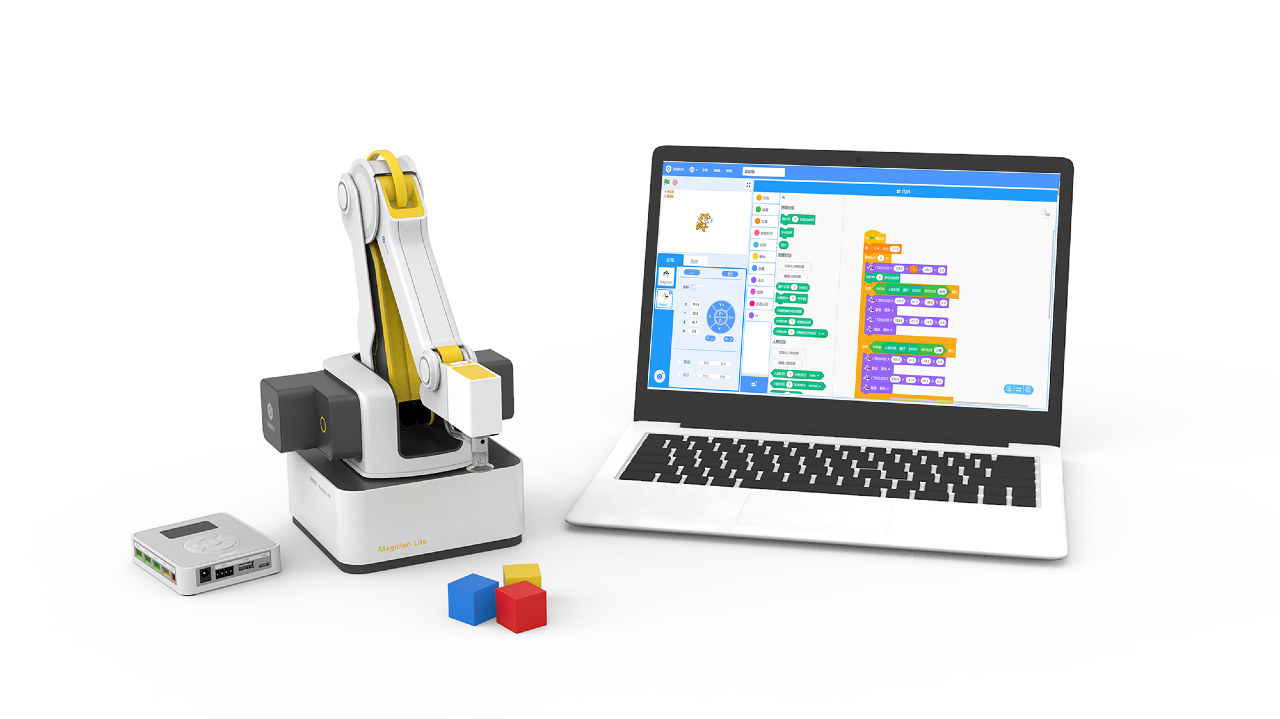

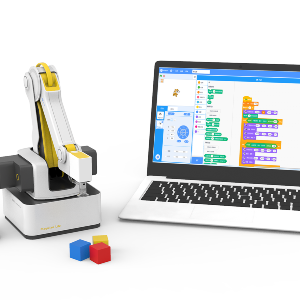

Graphical programming (software)

With the new DOBOT Scratch software platform, students can program, create games and animations by simply dragging and dropping coding blocks together, in order to control the robot's every move and learn how AI works while exploring technology and having fun.


All-age project-based teaching

Magician Lite comes with a complete curriculum system that is divided into three stages from beginner-level to advanced learner-level. The curriculum offers a variety of teaching demos that focus on experiential, project-based and exploratory-based learning. By participating in the DOBOT robotic competitions, students not only put their knowledge to test, but also get to perfect their comprehensive ability, engineering ability and innovation ability.

Magician Lite offers project-based teaching demos that are interactive, practical and interest-oriented, aiming to foster children’s logical thinking, hands-on skills and creativity.
Built to be open and widely compatible, Magician Lite can power legions of miniature immersive application scenarios, which not only help children better understand how AI and robots work in real settings, but also turn them into real-world problem solvers.


Abundant accessories for greater possibilities

DOBOT offers numerous kits for users to choose from, including writing and drawing kit, industry 4.0 kit, AI vision kit, wireless kit, and sensor kit. Coupled with intuitive programming, Magician Lite is packed with potential to achieve more and provides students and educators with unlimited opportunities to explore, discover and create.



Specifications:



Magician Lite Robotic Arm:

Degree of Freedom: 4

Maximum Load: 250g

Maximum reach: 340mm

Repeatability: ±0,2mm

Voltage: 100V-240V AC,50/60 Hz

Power Input: 12V ～ 5A DC

Working Environment: -5°C～45°C

Power: 60W Max

Communication: USB Virtual Serial Port / Serial Port

Software: DobotStudio/DobotLab

Weight: 2.4KG

Rear Arm / Forearm: 150mm

Base Size: 146mm×146mm

Magic Box:

MCU: ARM 32 bites Cortex-M4

Main Frequency: 168 MHz

Voltage: 100V-240V AC,50/60 Hz

Power Input: 12V ～ 5A DC

Working Environment: -5°C～45°C

Power: 60W Max

Communication: USB Virtual Serial Port/Serial Port/Bluetooth

Programming Language: MicroPython

Software: DobotStudio/DobotBlock

Weight: 98g

Size: 95mm×80mm×21.5mm

Axis Motion:

Axis 1- Base: -135° to +135°

Axis 2- Rear Arm: -5° to +80°

Axis 3- Forearm: -10° to +85°

Axis 4- End Tools: -145° to +145°

J1-J3 Max speed: 300°/s

J4 Max speed: 200°/s

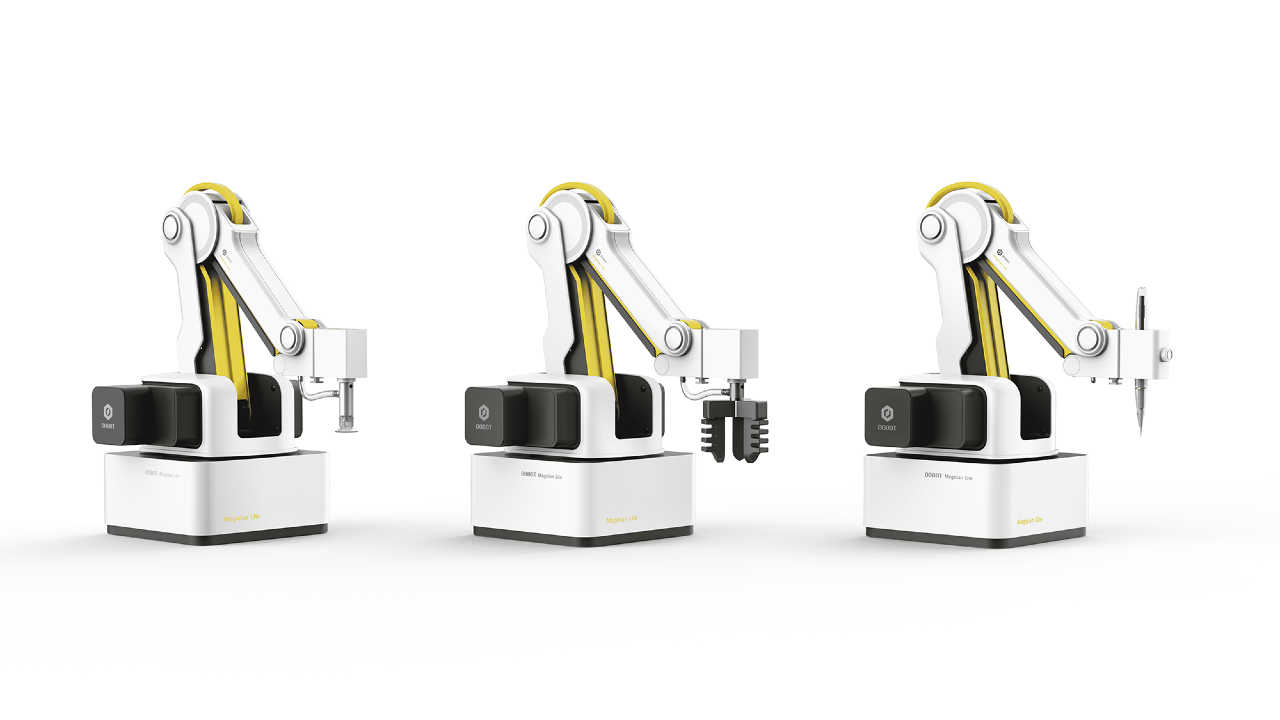

End Tools:

Pen Holder: Pen Diameter: 8-12 mm

Suction Cup - Built-in air pump drive works under negative pressure, with suction cup diameter of 10mm, 20mm.

Soft Gripper - Built-in air pump drive works under positive and negative pressure, with maximum opening and closing.

Expansion Interface:

Power Interface: ×2 4PIN, 12V～3A DC

Multi-Functional Communication Interface: ×2 10PIN, Serial Communication Interface

I/O Interface: ×6 Green Terminal, 4PIN, 3.3V/5V-IO, 5V 1A-VCC, Multi-Function Multiplexing Interface, User-Defined I/O, AD, PWM Output, I2C, etc.

Stepper Motor Interface: ×2 Yellow Terminal, 4PIN, 2-Phase Stepper Motor, 16 Subdivision, 12V

12V Power Interface: ×2 Red Terminal, 2PIN, 12V, 3A Max

AI Camera Kit:

Dimensions: 50mm*44mm*25mm

CMOS: 1/4inch

Image pixels: 1M

Image Format: YUV/MJPG

Data Format: 240*320. 640*480. 1280*720

Maximum Image Transfer Rate: 1280*720@30fps

Camera Control: Saturation, Contrast, Acutance

White balance: Auto

Exposure: Auto

Working Temperature: 0℃ to +50℃

Operating voltage: DC 5V

Interface: USB2.0

Voice input: Integrated microphone

Feature: All-in-one design, integrated microphone, distortion-free lens

Camera working angle: 0°-135°

Function: Face recognition, image recognition, OCR text recognition, speech



1 x Magician Lite robot arm
1 x Suction cup end tool
1 x Soft gripper end tool
1 x Pen holder end tool
1 x Camera kit
1 x Magix Box controller
16 x Building blocks with 2 pallets
1 x Work mat
3 x Different wrenches
1 x Set of screws
1 x Wall charger
1 x USB cable
1 x USB cable for the camera kit
2 x 10 pin cable
1 x User manual
