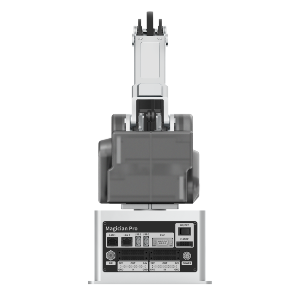

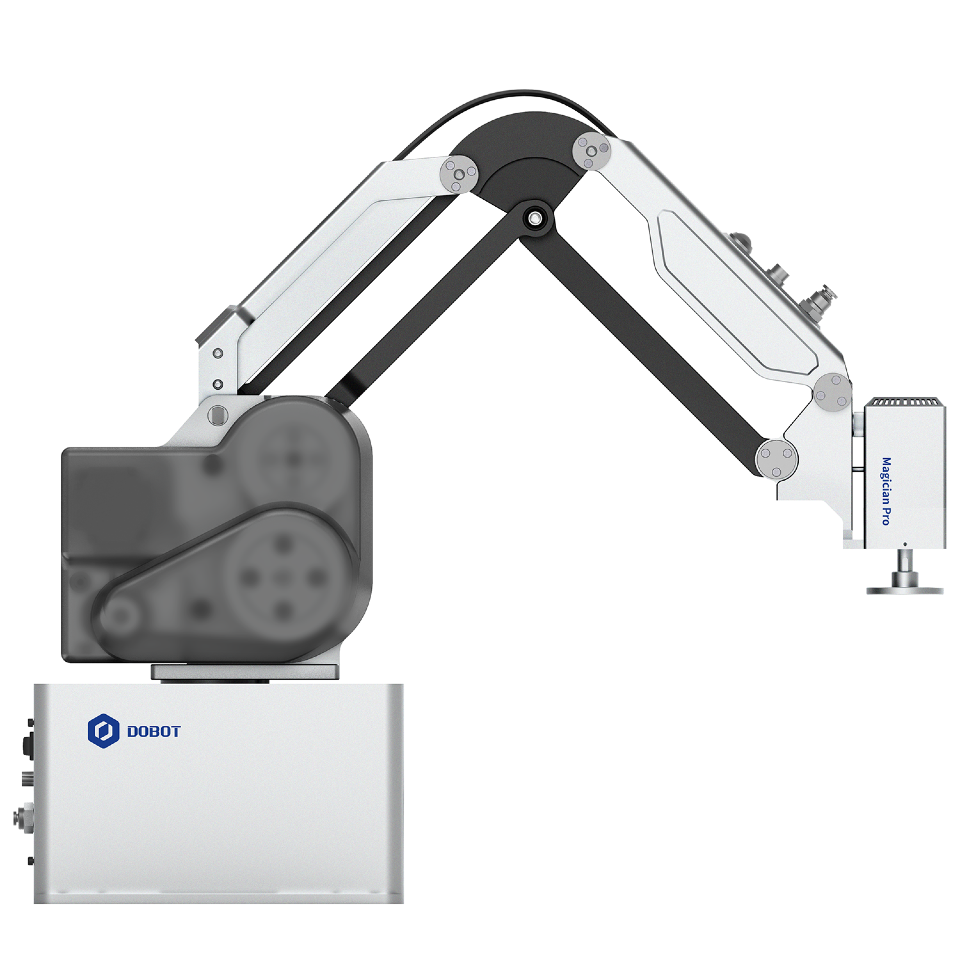

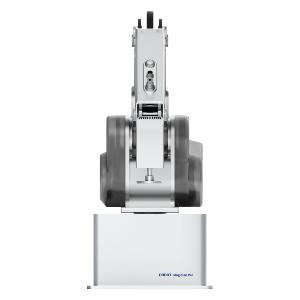

DOBOT Magician Pro (MG400)

Small Space Occupation

MG400 adopts a compact design that integrates the controller into the machine body with a 190mm*190mm footprint, which can be easily integrated into any production environment. Any space that is smaller than one piece of A4 paper, MG400 is good to go.


Professional Performance

MG400 is equipped with servo motors with a high-precision absolute encoder, a self-developed servo drive and controller, achieving a repeatability of ±0.05mm. With the vibration suppression algorithm deployed in the controller level, under the condition of ensuring the space trajectory accuracy of the robot's multi-axis motion, the repeatability bandwidth stabilization time is accelerated by 60%, and the residual vibration is reduced by 70%.


Simplicity Means Productivity

The design concept of simplicity is integrated into every dimension of the robot, making it much easier for small and medium-sized enterprises to apply automation. Shorter deployment time: integrated & compact design, flexible & easy to deploy, plug and work.

- More programming options: offering trajectory reproduction, graphical programming, and Lua script programming, which are ideal for applications of different complexity and developers with different programming skills.

- Higher programming efficiency: Intuitive programming interface and guided-interactive design greatly improve the programming efficiency and lower the threshold of robot applications.

- Higher debugging efficiency: supported by the robot dynamic gravity compensation algorithm, Magician Pro’s hand-held teaching is smooth, easy and efficient, reducing the teaching time during robot programing up to 80%.

• 1 pcs Dobot MG400
• 1 pcs Ethernet Cable
• 1 pcs Power Adapter
• 1pcs Suction Cup (In order to use the Suction Cup, the DOBOT MG400 MINI VACUUM SOURCE - Vacuum Source accessory must be present)
• 1pcs Adapter Flange
• 1pcs Emergency Stop
• 1pcs Zero position Fixture
• Accessories (like aviation connector, hexagon socket screws)
• Quick Start
