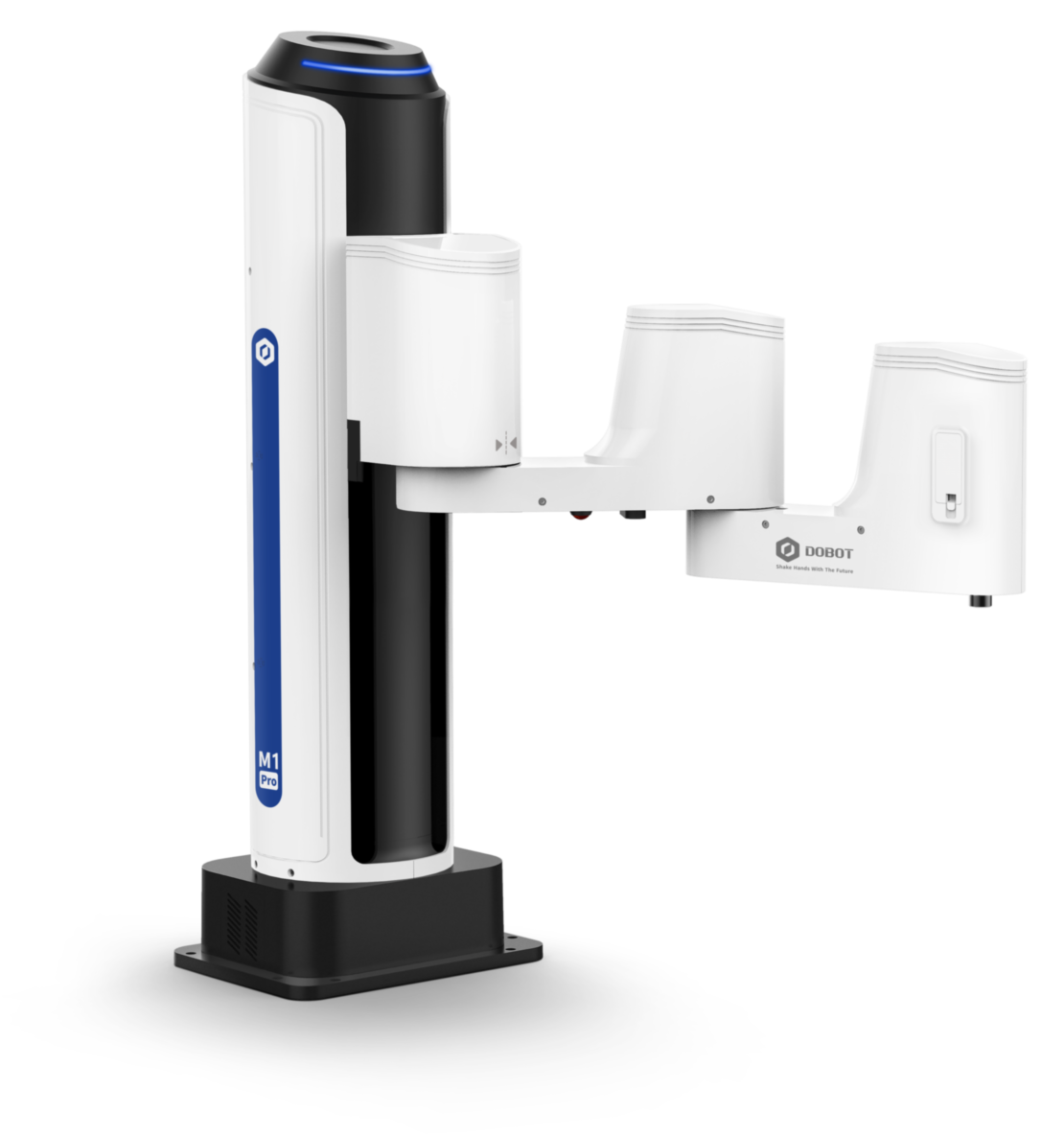

DOBOT M1 PRO
The DOBOT M1 Pro is the SCARA robot with a second-generation intelligent collision sensor. Ideal for industrial applications requiring high speed operations. Simple design, collision detection and manual learning make the M1 Pro smart and easy to use.
Main features

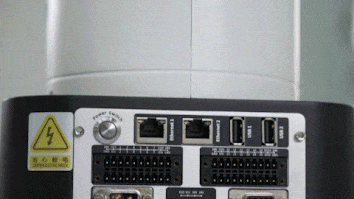

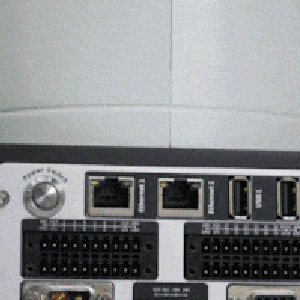

Quick installation
The integrated controller and robotic arm design allows plug and play connection, saving the process of installing connections and wires.

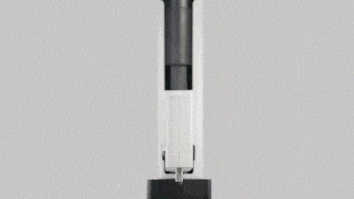

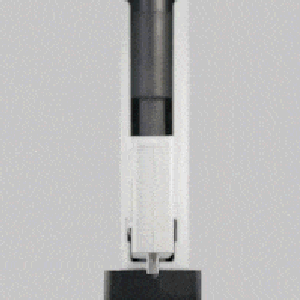

Reliable and safe
The M1 Pro can work with human operators without security risk. The front of the arm is 40% narrower than the arm of conventional industrial robotic arms. This can significantly reduce damage to the machine.
Easy to use

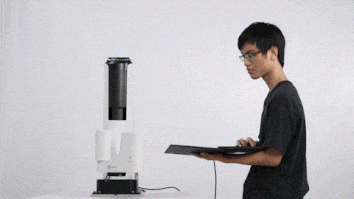

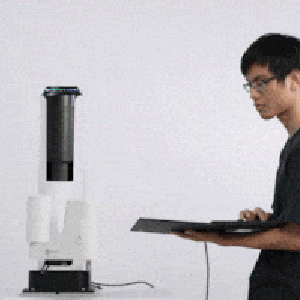

The M1 Pro supports wireless control on a variety of devices with a variety of programming options. When the operator activates the free-to-drop function, the robot arm easily pulls and drops the lever to any position. This saves significant time on testing and simplifies the programming process.
Intelligent power function
Designed for intelligent integration, the M1 Pro’s encoder interface supports the conveyor tracking function and adapts the robot’s trajectories to the conveyor’s movement.

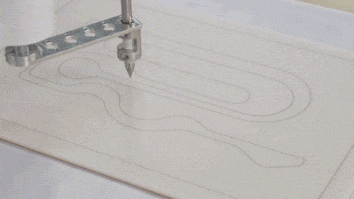

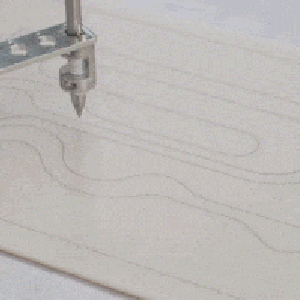

The M1 Pro maintains smooth movement and guarantees even production, e.g. for gluing applications.
| Model Number | M1 Pro | |
|---|---|---|
| Weight(kg) | 15.7 | |
| Load capacity(kg) | 1.5 | |
| Reach(mm) | 400 | |
| Repeatability(mm） | ±0.02 | |
| Power supply | 100~240VAC, 50/60Hz | |
| Communication | TCP/IP, Modbus TCP, Modbus RTU | |
| Joints | J1 | ±85° |
| J2 | ±130° | |
| J3 | 5mm ~ 245mm | |
| J4 | ±360° | |
| Max. joint speed | J1 | 180° /s |
| J2 | 180° /s | |
| J3 | 1000mm/s | |
| J4 | 1000° /s | |
Box contents
- 1 DOBOT M1 PRO SCARA ROBOTIC ARM
