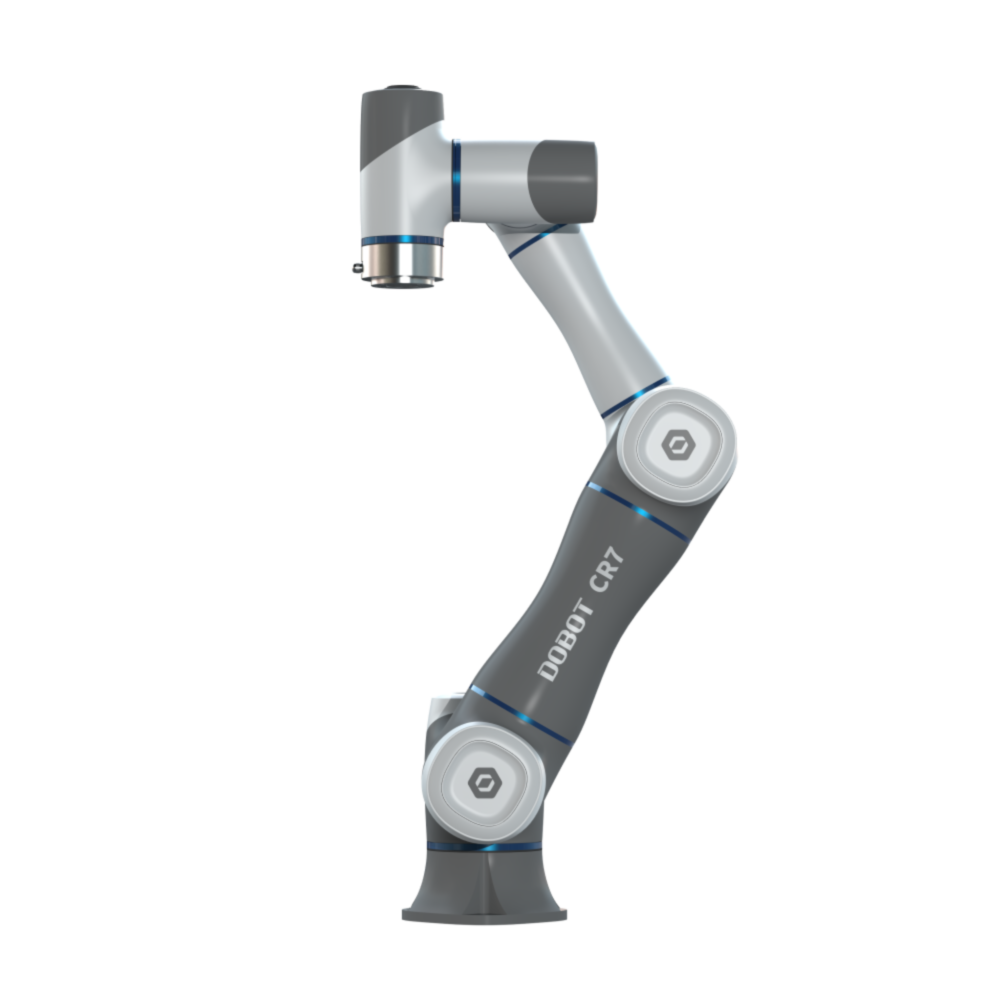

DOBOT CR7 Collaborative robotic arm
The safest and most flexible industrial cobots in the world.
The medium-sized member of the DOBOT CR series, the CR7, has arrived!
The Dobot CR7 belongs to the large size class of industrial cobots, its compact size and 7kg load capacity allow extensive production automation with the help of a robotic arm. There are countless types and uses of end tools, making them an extremely useful tool in all areas of the industry. In addition, it is excellent as a tool for vocational training, higher education, warehousing, production simulation and many other areas.
DOBOT's proprietary silicone impact protection system is currently available for the CR7 robot arm, guaranteeing our safety.
Main features
| Product Name | DOBOT CR5 | |
|---|---|---|
| Weight | 24.5kg | |
| Rated Payload | 7kg | |
| Maximum Reach | 990mm | |
| Rated Voltage | DC48V | |
| Max. Speed of TCP | 3m/s | |
| Joint Ranges | J1 | ±360° |
| J2 | ±360° | |
| J3 | ±160° | |
| J4 | ±360° | |
| J5 | ±360° | |
| J6 | ±360° | |
| Max. Speed of Joints | J1/J2 | 180°/s |
| J3/J4/J5/J6 | 180°/s | |
| End-Effectors I/O Interface | DI/DO/AI | 2 |
| AO | 0 | |
| Communication Interface | Communication | RS485 |
| Controller I/O | DI | 16 |
| DO/DI | 16 | |
| AI/AO | 2 | |
| ABZ Incremental Encoder | 1 | |
| Repeatability | ±0.02mm | |
| Communication | TCP/IP, Modbus, EtherCAT,WIFI | |
| IP Rating | IP54 | |
| Temperature | 0~45° | |
| Power Consumption | 150W | |
| Materials | Aluminum alloy, ABS plastic | |
