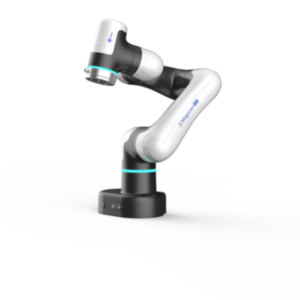

DOBOT MAGICIAN E6 Collaborative Robotic Arm
The safest and most flexible industrial cobots in the world.
The new member of the DOBOT MAGICIAN series is arrived, and is called E6!
The DOBOT Magician E6 is a desktop grade 6-axis cobot designed for education and scientific research. It has an industrial grade performance and is compatible with a wide range of accessories made for industrial use. It can accurately simulate various automation scenarios to provide immersive learning and research experiences. The Magician E6 has a number of interfaces for secondary development and course materials on robotics education, opening doors to a new way of education. It is the ideal platform to explore AI, smart manufacturing and other fields of study.
Main features
| Name | DOBOT MAGICIAN E6 | |
|---|---|---|
| Weight | < 7.2 kg | |
| Payload | 500 g | |
| Working Radius | 450 mm | |
| Rated Voltage | DC48V | |
| Maximum Speed of TCP | 0.5 m/s | |
| Range of Joints | J1 | ±360° |
| J2 | ±135° | |
| J3 | ±154° | |
| J4 | ±160° | |
| J5 | ±173° | |
| J6 | ±360° | |
| Maximum Joint Speed | J1/J2J3/J4/J5/J6 | 120°/s |
| External Interface | EMO/ABZ | 1/1 |
| Power Connector | 1 | |
| I/O Interface Communication Interface | Ethernet | TCP/IP |
| I/O Interface | DO/DI | 18/18 |
| 24V/GND | 5/5 | |
| ABZ Incremental Encoder | 1 | |
| Repeatability | ±0.01mm | |
| Communication Interface | TCP/IP, Modbus | |
| IP Rating | IP20 | |
| Working Temperature | 0~40° | |
| Noise | 60dB(A) | |
| Power Consumption | 130W | |
| Materials | Aluminum alloy, ABS plastic | |
